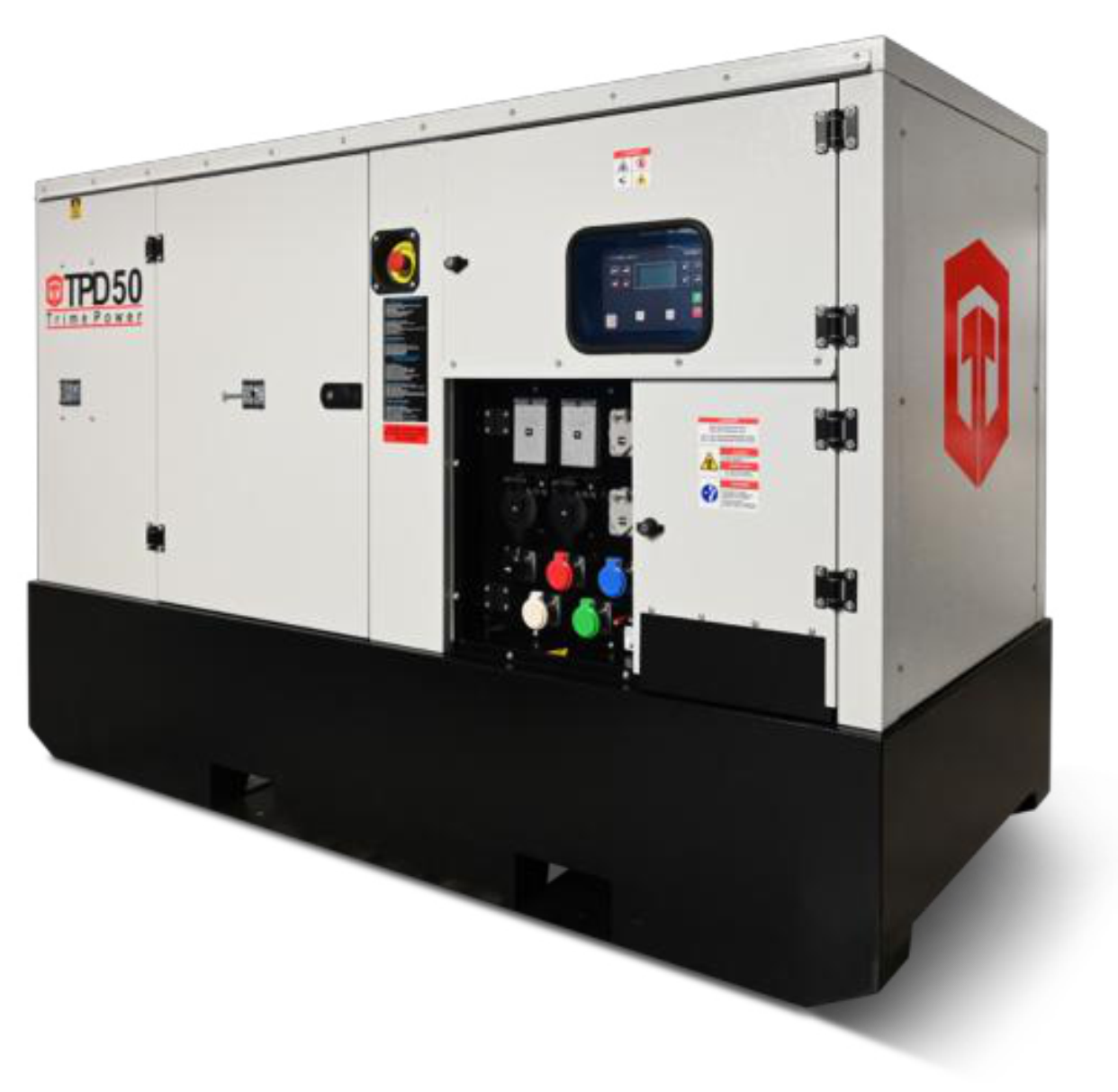

TPD50

Overview

Trime Power Generators are compact in design and provide a high level of standardization making the ease of use and maintenance ideal for the user. The control and electrical connection panels are curb side front on every generator.

Product Details

Power Output
50 kVA/40 kW Prime
Engine Make
& Model
Kohler
KDI 2504 TCR
EPA
T4F
Voltage 1PH
240/120
Voltage 3PH
480/277
208/120
Connections
1 Cam Lock Set, 2 50A Outlets, 2 20A Outlets

Dimensions & Weight

Dimensions
83.9"l x 36.2"w x 55.1"h
Dry Weight
2590.4 lbs
Operating Weight
3185.7 lbs

Key Features

  • Racor Filters
  • Cam Locks and Bus Bar (with d lugs installed and ready to use)
  • Plumbed drains for oil and coolant
  • Full containment under the entire unit/true 110%
  • Parallel included on 225kVA and larger
  • ComAP Controller (compatible with Deep Sea Paralleling)
  • Mecc Alte Alternator with MAAUX Boost Technology (extra windings dedicated to boost)
  • Battery Charger and Block Heater
  • External USB Connector to plug laptop into controller
  • 3 Pole Breaker
  • Easy Removeable Neutral Bond if needed
  • External Fuel Connections
